Product Summary

The AD9864BCPZ is a general-purpose IF subsystem that digitizes a low level 10 MHz to 300 MHz IF input with a signal bandwidth ranging from 6.8 kHz to 270 kHz.

Parametrics

Absolute maximum ratings: (1)VDDF, VDDA, VDDC,VDDD, VDDH, VDDL, VDDI:–0.3V to +4.0V ; (2)VDDF, VDDA, VDDC, VDDD, VDDH, VDDL, VDDI:–4.0V to +4.0V ; (3)VDDP, VDDQ:–0.3V to +6.0V ; (4)GNDF, GNDA, GNDC, GNDD,GNDH, GNDL, GNDI, GNDQ, GNDP, GNDS:–0.3V to +0.3V ; (5)MXOP, MXON, LOP,LON, IFIN, CXIF, CXVL, CXVM:–0.3V to VDDI+0.3V ; (6)PC, PD, PE, CLKOUT,DOUTA, DOUTB, FS, SYNCB:–0.3V to VDDH+0.3V ; (7)IF2N, IF2P, GCP, GCN:–0.3V to VDDF+0.3V ; (8)VFEFP, VREGN, RRE:–0.3V to VDDA+0.3V ; (9)IOUTC:–0.3V to VDDQ+0.3V ; (10)IOUTL GNDP –0.3 VDDP + 0.3 V ; (11)CLKP, CLKN:–0.3V to VDDC+0.3V ; (12)FREF:–0.3V to VDDL+0.3V ; (13)Junction Temperature:150℃; (14)Storage Temperature:–65℃ to +150℃; (15)Lead Temperature:300℃.

Features

Features: (1)10 MHz to 300 MHz input frequency ; (2)6.8 kHz to 270 kHz output signal bandwidth ; (3)7.5 dB SSB NF ; (4)–7.0 dBm IIP3 ; (5)AGC free range up to –34 dBm ; (6)12 dB continuous AGC range ; (7)16 dB front end attenuator ; (8)Baseband I/Q 16-bit (or 24-bit) serial digital output ; (9)LO and sampling clock synthesizers ; (10)370Ω input impedance ; (11)2.7 V to 3.6 V supply voltage ; (12)Low current consumption: 17 mA ; (13)48-lead LFCSP package.

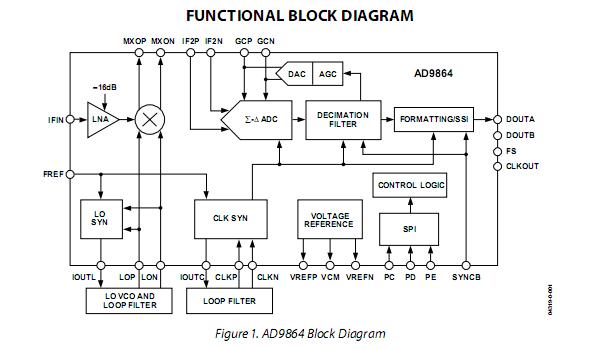

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

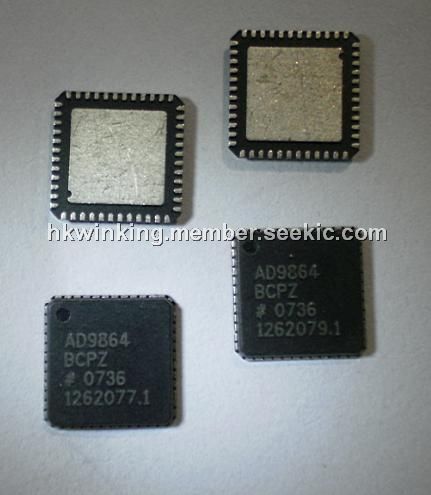

AD9864BCPZ
AD9864BCPZ

IC IF SUBSYSTEM GEN-PURP 48LFCSP
Data Sheet
0-1: $11.14
1-10: $10.30
10-100: $8.80
100-250: $8.07
250-500: $7.68
500-1000: $7.42
AD9864BCPZRL
AD9864BCPZRL

IC IF SUBSYSTEM GEN-PURP 48LFCSP
Data Sheet
0-2500: $7.42
