Product Summary

The LC4256V-75TN100-10I belongs to the high performance ispMACH 4000 family from Lattice, which offers a SuperFAST CPLD solution. The LC4256V-75TN100-10I combines high speed and low power with the flexibility needed for ease of design. With its robust Global Routing Pool and Output Routing Pool, this device delivers excellent First-Time-Fit, timing predictability, routing, pin-out retention and density migration. The LC4256V-75TN100-10I consists of multiple 36-input, 16-macrocell Generic Logic Blocks (GLBs) interconnected by a Global Routing Pool (GRP). Output Routing Pools (ORPs) connect the GLBs to the I/O Blocks (IOBs), which contain multiple I/O cells.

Parametrics

Absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to 5.5V; (2)Output Supply Voltage (VCCO): -0.5 to 4.5V; (3)Input or I/O Tristate Voltage Applied: -0.5 to 5.5V; (4)Storage Temperature: -65 to 150℃; (5)Junction Temperature (Tj) with Power Applied: -55 to 150℃.

Features

Features: (1)High Performance; (2)Ease of Design: Enhanced macrocells with individual clock, reset, preset and clock enable controls; Up to four global OE controls; Individual local OE control per I/O pin; Excellent First-Time-Fit and refit; Fast path, SpeedLocking Path, and wide-PT path; Wide input gating (36 input logic blocks) for fast counters, state machines and address decoders; (3)Low Power; (4)Broad Device Offering; (5)Easy System Integration.

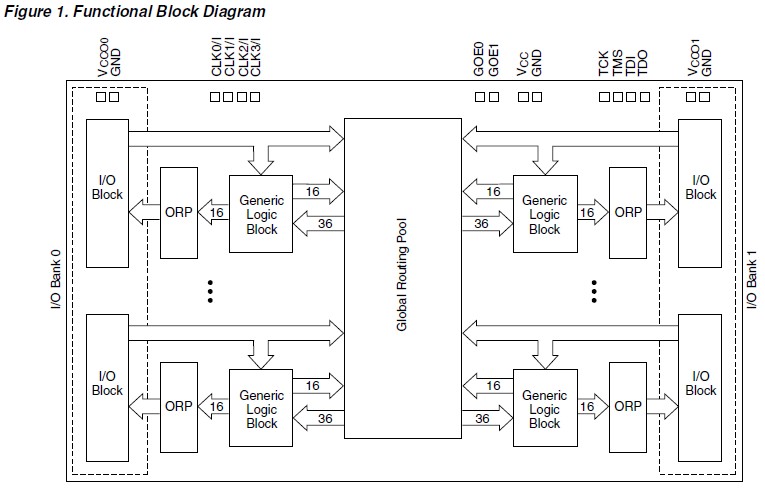

Diagrams
