Product Summary

The LT3470ETS8 is a micropower step-down DC/DC converter that integrates a 300mA power switch, catch diode and boost diode into a low profile (1mm) ThinSOTTM package. It combines Burst Mode and continuous operation to allow the use of tiny inductor and capacitors while providing a low ripple output to loads of up to 200mA.

Parametrics

Absolute maximum ratings: (1)VIN, SHDN Voltage: 40V; (2)BOOST Pin Voltage: 47V; (3)BOOST Pin Above SW Pin: 25V; (4)FB Voltage: 5V; (5)BIAS Voltage: 25V; (6)SW Voltage: VIN; (7)Maximum Junction Temperature: 125℃; (8)Operating Temperature Range: –40℃ to 85℃; (9)Storage Temperature Range: –65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.

Features

Features: (1)Low Quiescent Current: 26μA at 12VIN to 3.3VOUT; (2)Integrated Boost and Catch Diodes; (3)Input Range: 4V to 40V; (4)Low Output Ripple: <10mV; (5)<1μA in Shutdown Mode; (6)Output Voltage: 1.25V to 16V; (7)200mA Output Current; (8)Hysteretic Mode Control: Low Ripple Burst ModeR Operation at Light Loads; Continuous Operation at Higher Loads; (9)Solution Size as Small as 50mm2; (10)Low Profile (1mm) ThinSOT Package.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

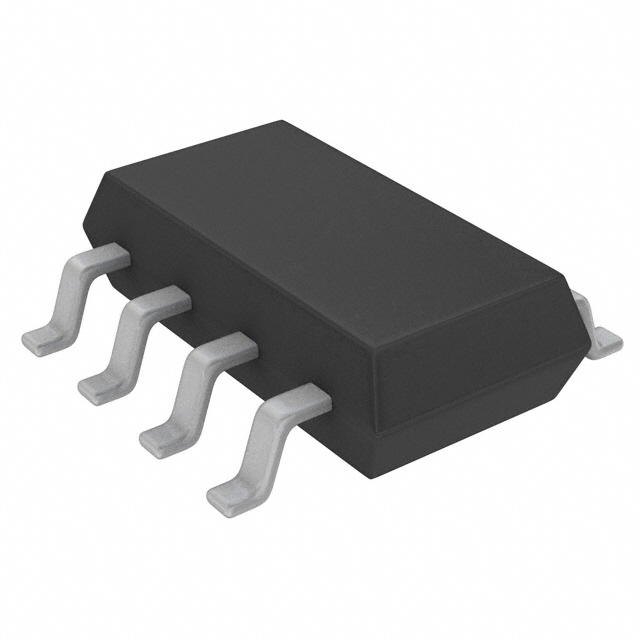

LT3470ETS8
LT3470ETS8

Other


Data Sheet

Negotiable

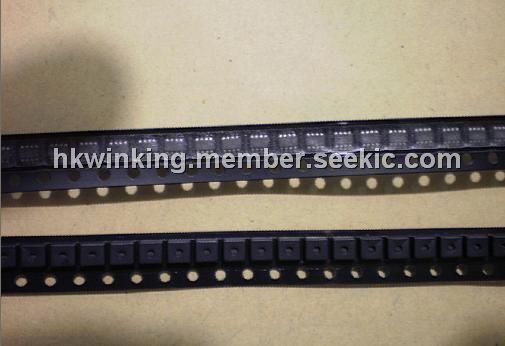

LT3470ETS8#TRMPBF
LT3470ETS8#TRMPBF


IC REG BUCK ADJ 0.2A TSOT23-8

Data Sheet

0-500: $1.50
LT3470ETS8#TRPBF
LT3470ETS8#TRPBF


IC REG BUCK ADJ 0.2A TSOT23-8

Data Sheet

0-2500: $1.50
