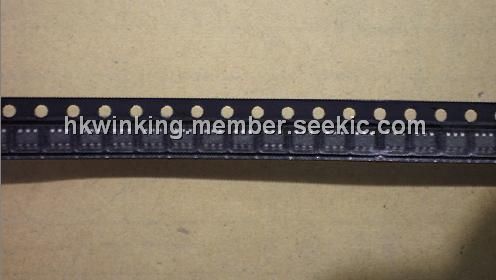

LTC3405AES6

regulator, sot, – 0.3V to 6V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.81~0.83 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.81~0.83

PartNumber:: LTC3405AES6

Brand:: Linear Technology - Linear | Pack: SOT | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-05-03

From Other Seller

Part Number:LTC3405AES6
US $0.81 - 0.83
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LTC3405AES6 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. Supply current during operation is only 20μA and drops to <1μA in shutdown. The 2.5V to 5.5V input voltage range makes the LTC3405A ideally suited for single Li-Ion battery-powered applications. 100% duty cycle provides low dropout operation, extending battery life in portable systems.

Parametrics

Absolute maximum ratings: (1)Input Supply Voltage: – 0.3V to 6V; (2)MODE, RUN, VFB Voltages: – 0.3V to VIN; (3)SW Voltage: – 0.3V to (VIN + 0.3V); (4)P-Channel Switch Source Current (DC): 400mA; (5)N-Channel Switch Sink Current (DC): 400mA; (6)Peak SW Sink and Source Current: 630mA; (7)Operating Temperature Range: –40℃ to 85℃; (8)Junction Temperature: 125℃; (9)Storage Temperature Range: – 65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.

Features

Features: (1)High Efficiency: Up to 96%; (2)Very Low Quiescent Current: Only 20μA During Operation; (3)300mA Output Current at VIN = 3V; (4)2.5V to 5.5V Input Voltage Range; (5)1.5MHz Constant Frequency Operation; (6)No Schottky Diode Required; (7)Low Dropout Operation: 100% Duty Cycle; (8)Stable with Ceramic Capacitors; (9)0.8V Reference Allows Low Output Voltages; (10)Shutdown Mode Draws < 1μA Supply Current; (11)±2% Output Voltage Accuracy; (12)Current Mode Operation for Excellent Line and Load Transient Response; (13)Overtemperature Protected; (14)Low Profile (1mm) ThinSOTTM Package.
