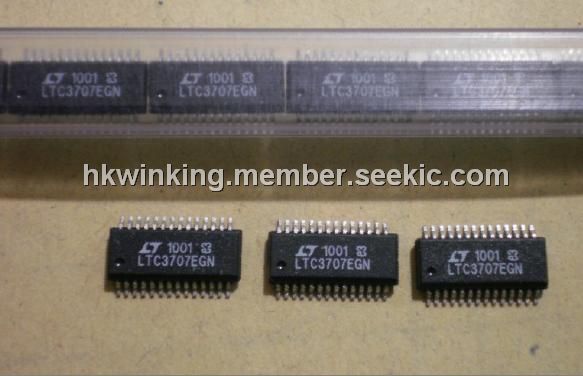

LTC3707EGN

SSOP, controller, 30V to – 0.3V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.66~2.75 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.66~2.75

PartNumber:: LTC3707EGN

Brand:: Linear Technology - Linear | Pack: SSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-05-02

From Other Seller

Part Number:LTC3707EGN
US $2.66 - 2.75
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LTC3707EGN is a high performance dual step-down switching regulator controller that drives N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows adjustment of the frequency up to 300kHz. Power loss and noise due to the ESR of the input capacitors are minimized by operating the two controller output stages out of phase.

Parametrics

Absolute maximum ratings: (1)Input Supply Voltage (VIN): 30V to – 0.3V; (2)Top Side Driver Voltages (BOOST1, BOOST2): 36V to –0.3V; (3)Switch Voltage (SW1, SW2): 30V to –5V; (4)INTVCC, EXTVCC, RUN/SS1, RUN/SS2, (BOOST1-SW1),; (5)(BOOST2-SW2), PGOOD: 7V to –0.3V; (6)SENSE1+, SENSE2+, SENSE1–, SENSE2– Voltages: (1.1)INTVCC to –0.3V; (7)FREQSET, STBYMD, FCB Voltage: INTVCC to –0.3V; (8)ITH1, ITH2, VOSENSE1, VOSENSE2 Voltages: 2.7V to –0.3V; (9)Peak Output Current <10μs (TG1, TG2, BG1, BG2): 3A; (10)INTVCC Peak Output Current: 40mA; (11)Operating Temperature Range: –40℃ to 85℃; (12)Junction Temperature: 125℃; (13)Storage Temperature Range: –65℃ to 150℃; (14)Lead Temperature (Soldering, 10 sec): 300℃.

Features

Features: (1)180° Phased Dual Controllers Reduce Required Input Capacitance and Power Supply Induced Noise; (2)OPTI-LOOPR Compensation Minimizes COUT; (3)±1.5% Output Voltage Accuracy over Temperature; (4)Dual N-Channel MOSFET Synchronous Drive; (5)Power Good Output Voltage Monitor; (6)DC Programmed Fixed Frequency 150kHz to 300kHz; (7)Wide VIN Range: 4.5V to 28V Operation; (8)Very Low Dropout Operation: 99% Duty Cycle; (9)Adjustable Soft-Start Current Ramping; (10)Foldback Output Current Limiting; (11)Latched Short-Circuit Shutdown with Defeat Option; (12)Output Overvoltage Protection; (13)Remote Output Voltage Sense; (14)Low Shutdown IQ: 20μA; (15)5V and 3.3V Standby Regulators; (16)Selectable Constant Frequency, Burst ModeR Operation or PWM Operation; (17)Small 28-Lead Narrow SSOP Package.
