Product Summary

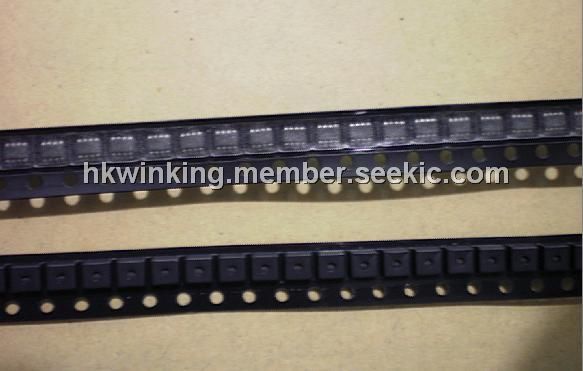

The LT3470ITS8 is a micropower step-down DC/DC converter that integrates a 300mA power switch, catch diode and boost diode into a low profile (1mm) ThinSOTTM package. It combines Burst Mode and continuous operation to allow the use of tiny inductor and capacitors while providing a low ripple output to loads of up to 200mA.
Parametrics
Absolute maximum ratings: (1)VIN, SHDN Voltage: 40V; (2)BOOST Pin Voltage: 47V; (3)BOOST Pin Above SW Pin: 25V; (4)FB Voltage: 5V; (5)BIAS Voltage: 25V; (6)SW Voltage: VIN; (7)Maximum Junction Temperature: 125℃; (8)Operating Temperature Range: –40℃ to 85℃; (9)Storage Temperature Range: –65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.
Features
Features: (1)Low Quiescent Current: 26μA at 12VIN to 3.3VOUT; (2)Integrated Boost and Catch Diodes; (3)Input Range: 4V to 40V; (4)Low Output Ripple: <10mV; (5)<1μA in Shutdown Mode; (6)Output Voltage: 1.25V to 16V; (7)200mA Output Current; (8)Hysteretic Mode Control: Low Ripple Burst ModeR Operation at Light Loads; Continuous Operation at Higher Loads; (9)Solution Size as Small as 50mm2; (10)Low Profile (1mm) ThinSOT Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT3470ITS8#TRMPBF |
|
IC REG BUCK ADJ 0.2A TSOT23-8 |
Data Sheet |
|
|
||||||||||
|
LT3470ITS8#TRPBF |
|
IC REG BUCK ADJ 0.2A TSOT23-8 |
Data Sheet |
|
|
||||||||||
