Product Summary
The LTC2631ACTS8-HM12 is a voltageoutput DAC with an integrated, high accuracy, low-drift reference in an 8-lead TSOT-23 package. It has a rail-to-rail output buffer that is guaranteed monotonic. It is suitable for mobile communications, process control and industrial automation, automatic test equipment, portable equipment, automative and optical networking.
Parametrics
Absolute maximum ratings: (1)Supply Voltage (VCC): –0.3V to 6V; (2)REF_SEL, SCL, SDA: –0.3V to 6V; (3)VOUT, CA0, CA1, REF: –0.3V to Min(VCC + 0.3V, 6V); (4)Maximum Junction Temperature: 150℃; (5)Storage Temperature Range: –65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.
Features
Features: (1)Bidirectional Reference: Input or 10ppm/℃ Output; (2)400kHz I2C. Interface; (3)Low Noise (0.7mVP-P, 0.1Hz to 200kHz); (4)Guaranteed Monotonic Over Temperature; (5)Low Power Operation: 180μA at 3V; (6)Power Down to 1.8μA Maximum (C and I Grades); (7)Power-On Reset to Zero or Mid-Scale Options; (8)Double-Buffered Data Latches; (9)Guaranteed Operation From –40℃ to 125℃ (H-Grade); (10)8-Lead TSOT-23 (ThinSOT.) Package.

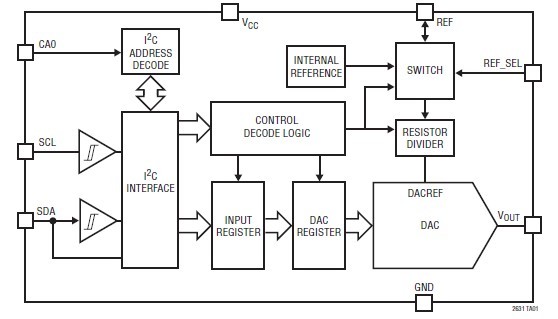

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC2631ACTS8-HM12#TRMPBF |
|
IC DAC 12BIT VOUT TSOT23-8 |
Data Sheet |
|
|
||||||
|
LTC2631ACTS8-HM12#TRPBF |
|
IC DAC 12BIT VOUT TSOT23-8 |
Data Sheet |
|
|
||||||
